Buy Level Meter Manufacturer Manufacturer – SUP-RD909 70 meters Radar level meter – Sinomeasure Detail:

  • Specification
 Product  Radar level meter
 Model SUP-RD909
 Measure range 0-70 meters
 Application Rivers, Lakes, Shoal
 Process Connection Thread G1½ A”/frame /flange
 Medium Temperature -20℃~100℃
 Process Pressure    Normal pressure
 Accuracy ±10mm
 Protection Grade IP67 / IP65
 Frequency Range 26GHz
 Signal Output 4-20mA (Two-wire/Four)
RS485/Modbus
 Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
  • Introduction

SUP-RD909 Radar level meter adopts a recommended industry emission frequency of 26GHz. The measurement range of up to 70 meters, covering a large reservoir water level measurement.

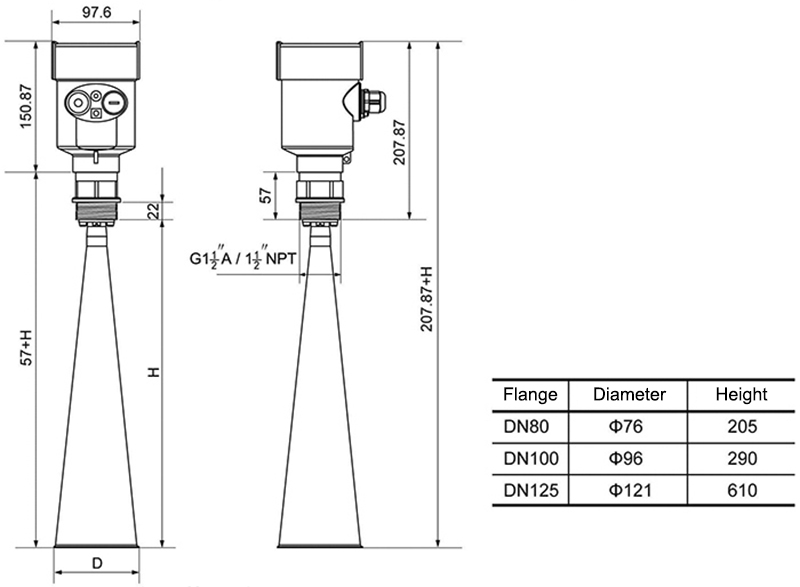

  • Product Size



  • Installation guide
Be installed in the diameter of the 1/4 or 1/6.

Note: The minimum distance from the tank

wall should be 200mm.

Note:  ① datum

②The container center or axis of symmetry

The top conical tank level, can be installed at

the top of the tank is intermediate, can guarantee

the measurement to the conical bottom

 A feed antenna to the vertical alignment surface.

 If the surface is rough, stack angle must be used

 to adjust the angle of cardan flange of the antenna

 to the alignment surface.

  (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.)


Product detail pictures:

Buy Level Meter Manufacturer Manufacturer –  SUP-RD909 70 meters Radar level meter – Sinomeasure detail pictures

Buy Level Meter Manufacturer Manufacturer –  SUP-RD909 70 meters Radar level meter – Sinomeasure detail pictures

Buy Level Meter Manufacturer Manufacturer –  SUP-RD909 70 meters Radar level meter – Sinomeasure detail pictures

Buy Level Meter Manufacturer Manufacturer –  SUP-RD909 70 meters Radar level meter – Sinomeasure detail pictures
