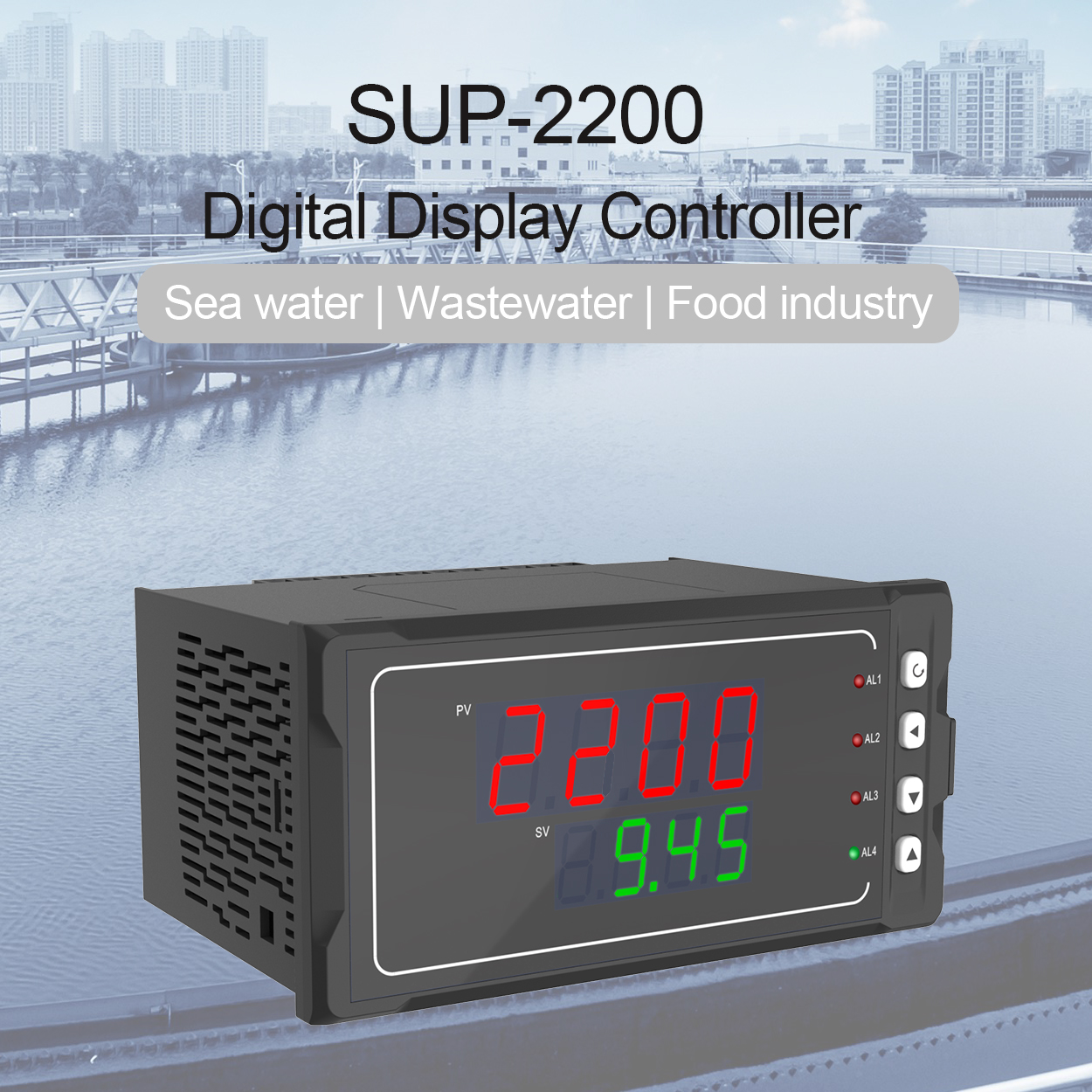

SUP-2200 Dual-loop digital display controller
-
Specification
| Products | Dual-loop digital display controller |
| Model no. | SUP-2200 |
| Display | Dual-screen LED display |
| Dimension | A.160*80*110 mm B. 80*160*110 mm C. 96*96*110 mm D. 96*48*110 mm E. 48*96*110 mm F. 72*72*110 mm K. 160*80*110 mm L. 80*160*110 mm |
| Accuracy | ±0.2%FS |
| Transmission output | Analog output—-Analog output—-4-20mA、1-5v、 0-10mA、0-20mA、0-5V、0-10V |
| Relay Output | ALM—With upper and lower limit alarm function, with alarm return difference setting；Relay contact capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistance C load） AC220V/2A(big)DC24V/2A(big)（Resistive load） |
| Power supply | AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W 12~36VDC Power consumption ≤ 3W |
| Use environment | Operating temperature（-10~50℃）No condensation, no icing |
-
Introduction

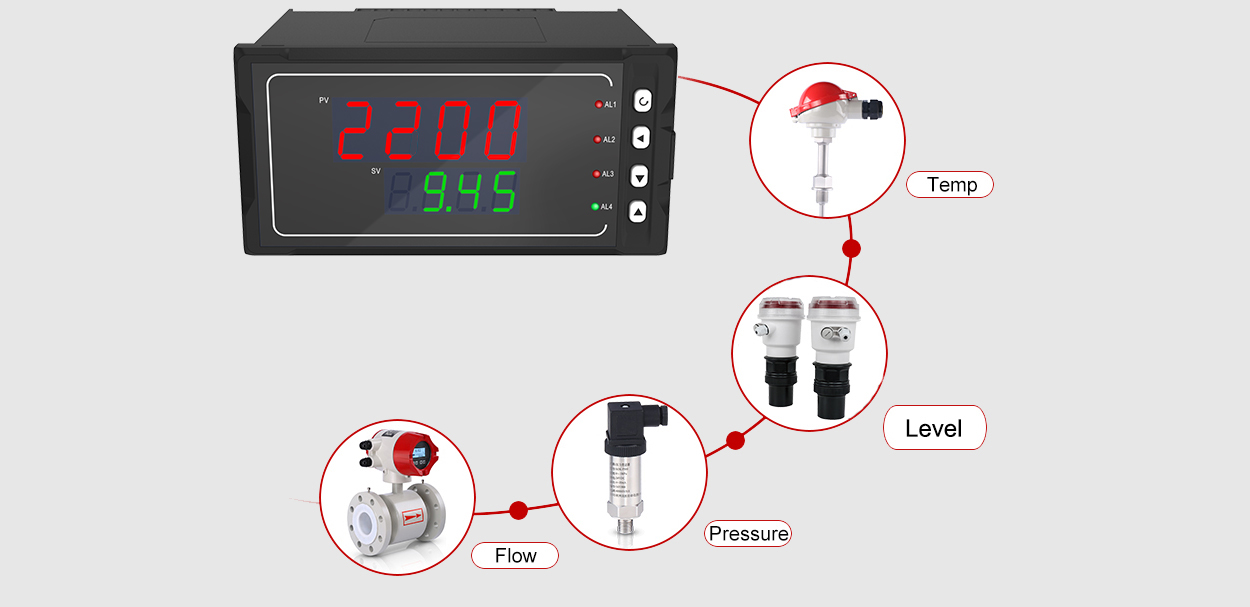

Dual-loop digital display controller with automatic SMD packaging technology has a strong anti-jamming capability. It can be used in conjunction with various sensors、transmitters to display temperature, pressure, liquid level, speed, force and other physical parameters, and to output alarm control, analog transmission, RS-485/232 communication etc. Designed with dual-screen LED display, you can set the displaying contents of upper and lower screen, and through mathematic function you can make addition, subtraction, multiplication and division to the two input loop input signals, and it has a very good applicability.
