SUP-2700 Multi-loop digital display controller
-
Specification
| Product | Multi-loop digital display controller |
| Model | SUP-2700 |
| Dimension | A. 160*80*136mm B. 80*160*136mm C. 96*96*136mm |
| Measurement accuracy | ±0.2%FS |
| Transmission output | Analog output—-4-20mA、1-5v、 0-10mA、0-5V、0-20mA、0-10V |
| Alarm Output | Over-range display value flashing alarm function
With upper and lower limit alarm function, with alarm return difference setting；Relay capacity： |
| Power supply | AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC 20~29V Power consumption≤3W |
| Use environment | Operating temperature（-10~50℃）No condensation, no icing |
| Printout | RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions |
-
Introduction

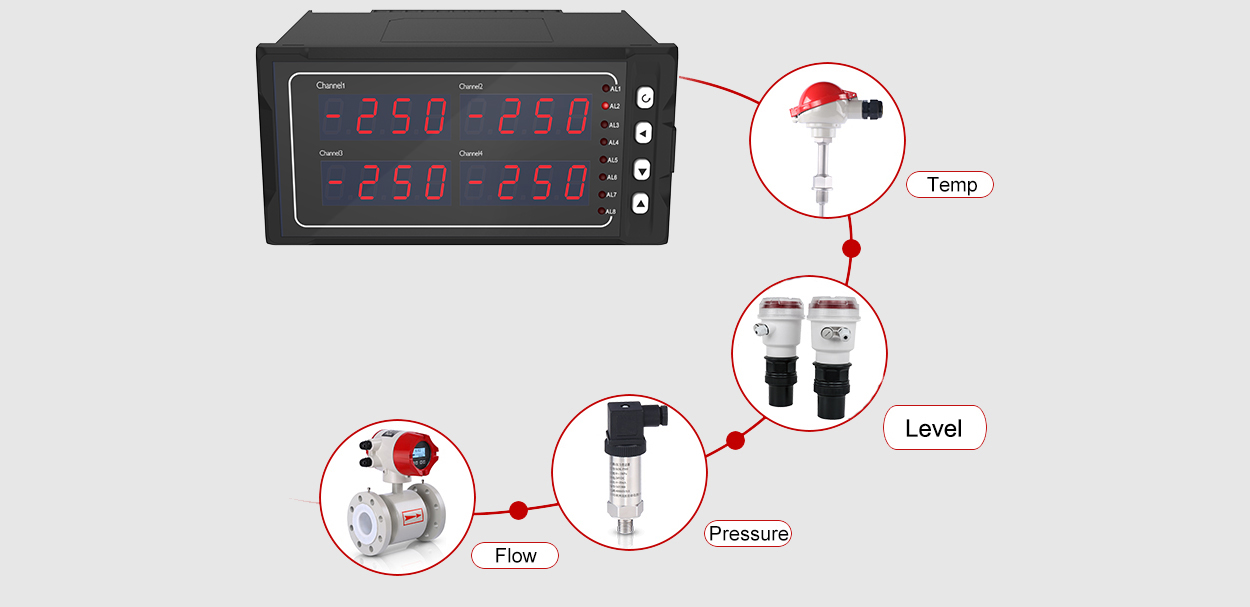

Multi-loop digital display control instrument with automatic SMD packaging technology, has a strong anti-jamming capability. It can be used in conjunction with various sensors、transmitters to display temperature, pressure, liquid level, speed, force and other physical parameters, and it can measure 8~16 loops input go the rounds, support 8~16 loops “uniform alarm output”, “16 loops separate alarm output”, “uniform transition output ”, “8 loops separate transition output” and 485/232 communication, and is applicable in system with various measuring points.
Input signal type list:
| Graduation Number Pn | Signal type | Measure range | Graduation Number Pn | Signal type | Measure range |
| 0 | TC B | 400~1800℃ | 18 | Remote Resistance 0～350Ω | -1999～9999 |
| 1 | TC S | 0～1600℃ | 19 | Remote Resistance 3 0～350Ω | -1999～9999 |
| 2 | TC K | 0～1300℃ | 20 | 0～20mV | -1999～9999 |
| 3 | TC E | 0～1000℃ | 21 | 0～40mV | -1999～9999 |
| 4 | TC T | -200.0～400.0℃ | 22 | 0～100mV | -1999～9999 |
| 5 | TC J | 0～1200℃ | 23 | -20～20mV | -1999～9999 |
| 6 | TC R | 0～1600℃ | 24 | -100～100mV | -1999～9999 |
| 7 | TC N | 0～1300℃ | 25 | 0～20mA | -1999～9999 |
| 8 | F2 | 700～2000℃ | 26 | 0～10mA | -1999～9999 |
| 9 | TC Wre3-25 | 0～2300℃ | 27 | 4～20mA | -1999～9999 |
| 10 | TC Wre5-26 | 0～2300℃ | 28 | 0～5V | -1999～9999 |
| 11 | RTD Cu50 | -50.0～150.0℃ | 29 | 1～5V | -1999～9999 |
| 12 | RTD Cu53 | -50.0～150.0℃ | 30 | -5～5V | -1999～9999 |
| 13 | RTD Cu100 | -50.0～150.0℃ | 31 | 0～10V | -1999～9999 |
| 14 | RTD Pt100 | -200.0～650.0℃ | 32 | 0～10mA square | -1999～9999 |
| 15 | RTD BA1 | -200.0～600.0℃ | 33 | 4～20mA square | -1999～9999 |
| 16 | RTD BA2 | -200.0～600.0℃ | 34 | 0～5V square | -1999～9999 |
| 17 | Linear resistance 0～400Ω | -1999～9999 | 35 | 1～5V square | -1999～9999 |
